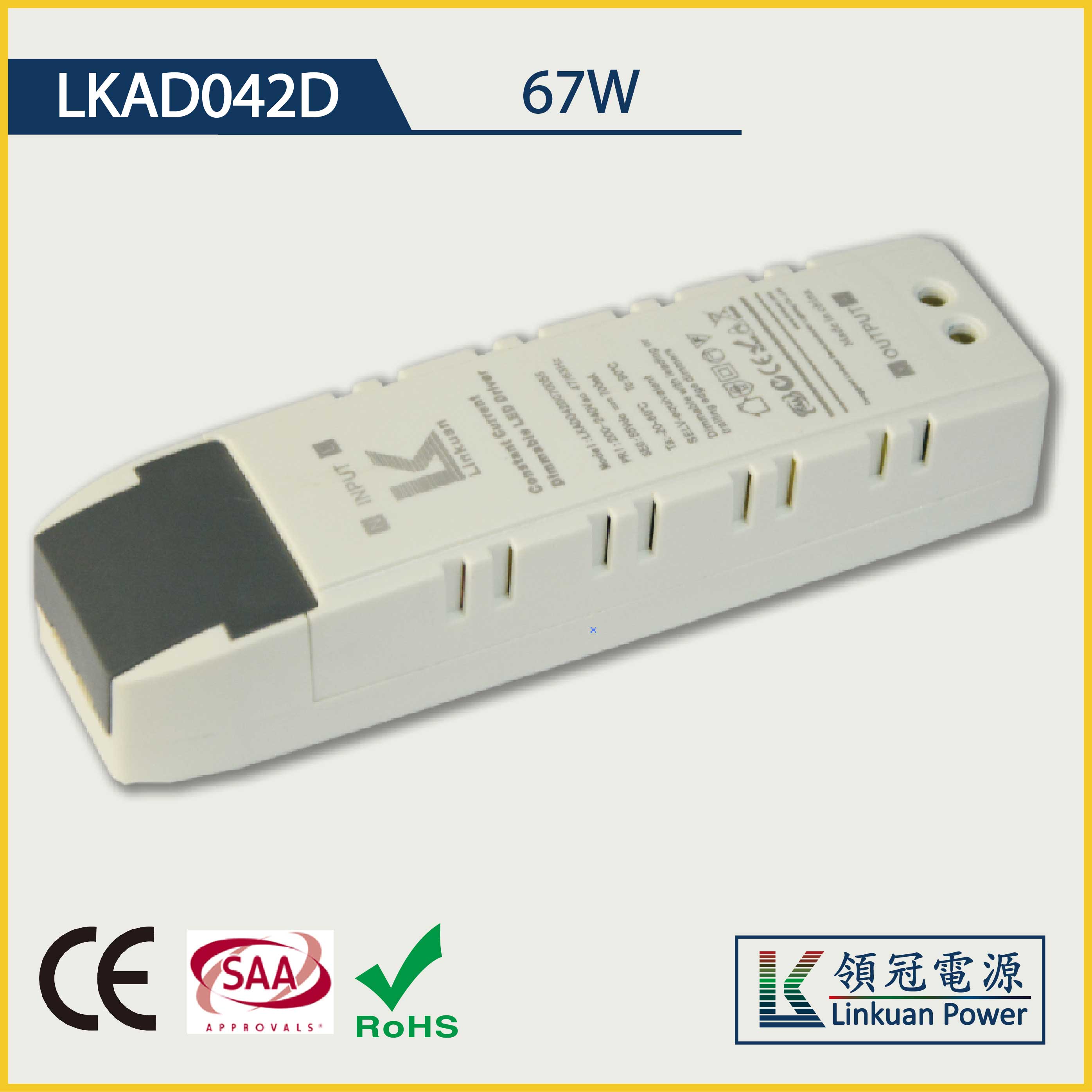

LKAD042D 67W 25-42V 1600mA Dimmable LED drivers
  • LKAD042D 67W 25-42V 1600mA Dimmable LED drivers

LKAD042D 67W 25-42V 1600mA Dimmable LED drivers

  • Product model : LKAD042D
  • Input voltage : 200-240Vac
  • Output power(W) : 67W
  • Output voltage : 25-42Vdc
  • Output current(A) : 1100-1600mA
  • Light adjustment : Triac Dimming
  • Size(MM) : 163x 45 x 31mm
Authentication:
Skype
  • Product Detail
  • Send Inquiry
  • Download

LKAD042D SAA CE approved 67W 25-42V 1600mA Dimmable LED drivers

Features

  • 200-240VAC(50/60Hz) Input
  • Isolated, leading (or trailing) triac dimming,dimming much smoothly;
  • Hight efficiency,hight PF,good steady;
  • Short circuit,over voltage,over current and over temperature protection;
  • 100% full load burn-in test;
  • CE approved;
  • ndependent, ClassⅡ constant current type;
  • degree of protection IP20;
  • suitable for LED lighting,ceiling light,down light and panel light;
  • 3 years warranty.



More Details

Model

LKAD042D

輸入Input

AC電壓范圍/AC Voltage range

200-240V

頻率/Frequency

50/60hz

諧波/THD

功率因數/Power factor

0.97/220VAC

輸出Output

額定電壓/Rated voltage

40V

空載電壓/No-load Voltage

43V

DC電壓范圍/DC voltage range

30-40V

DC電流范圍/DC current range

1345-1440mA

電流精度/Current precision

(+/-)4%

額定功率/Rated power

56W

開機延時/Setup Time

≤0.5s/230VAC

使用環境Environment Requirements

工作溫度/濕度要求Operating Temp./RH

-30～+45℃/20～95%

儲存溫度,濕度要求

Storage Temp./RH

-40～+80℃/10～95%

安全和電磁兼容

認證編號/Certificate

SAA:151581-EA

其他

尺寸/Size

L163*W45*H31mm

重量/Net weight

---
