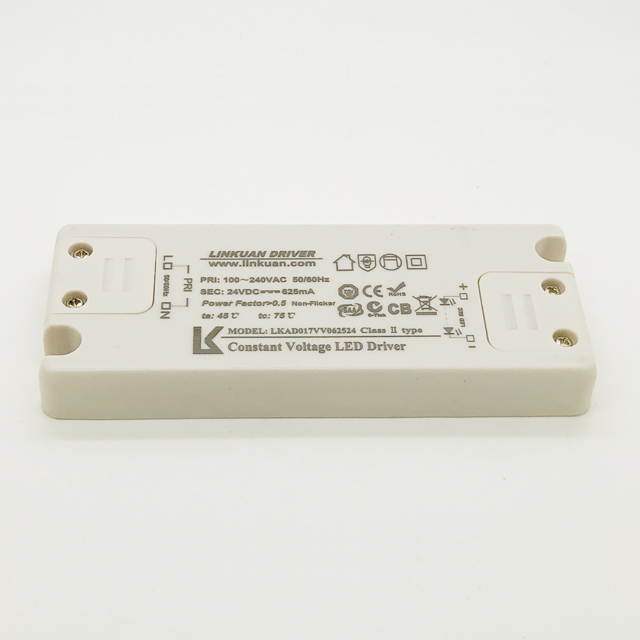

| Model | LKAD017D-T | |||||
| 輸入 Input | 輸入電壓范圍/Input Voltage range | 100-132V | ||||
| 頻率/Frequency | 50/60hz | |||||
| 諧波/THD | ≤15% | |||||
| 功率因數/Power factor | 0.95/120VAC | |||||
| 輸入電流 Input current（mA) | 70MA | |||||
| 待機功耗 stand_by power | 0.5W | |||||
| 浪涌電流 Inrush Current(Max.) | ≤15A@120VAC | |||||
| 漏電流 Leakage Current | <1MA/120V | |||||
| 輸出 Output | 額定電壓/Rated voltage | 40V | ||||
| 空載電壓/No-load Voltage | 40V | |||||
| 工作電壓范圍/working voltage range | 20-40V | |||||
| 可選擇電流規格/selectable current specs | 200-300MA | |||||
| 電流精度/Current precision | (+/-)3% | |||||
| 額定功率/Rated power | 12W | |||||
| 開機延時/Setup Time | ≤0.5s/230VAC | |||||
| 輸出線性調整率Output Line Regulation | ±5% | |||||
| 溫度漂移temperature drift | ±10% | |||||
| 保護特性 | 開路保護Output open circuit protection | 有/Enable | ||||
| 短路保護Short Circuit Protection | 打嗝模式/Hiccup mode | |||||
| 使用環境 Environment Requirements | 工作溫度/濕度要求 Operating Temp./RH | -30～+45℃/20～95% | ||||
| 儲存溫度,濕度要求 Storage Temp./RH | -40～+80℃/10～95% | |||||
| 安全和電磁兼容 Safety & EMC | 認證編號/Certificate | 符合CE/ meet CE | ||||
| 耐壓 withstand voltage | 3750MA/60S | |||||
| 絕緣阻抗insulation resistance | 500V>100M | |||||
| 浪涌等級EMS immunity | IEC6100-4-5(L-N:1KV) | |||||
| 安規標準Safety standard | EN61347,GB19510 | |||||
| 電磁干擾electromagnetic interference | ||||||
| 電磁抗干擾Electromagnetic Susceptibility | ||||||
|
其他 Others |
IP等級說明 IP level description | IP20 | ||||
| 質保說明Warranty instructions | 3年/3 years | |||||
| 尺寸/Size | 126*51*10MM | |||||
| 重量/Netweight | 125g | |||||
