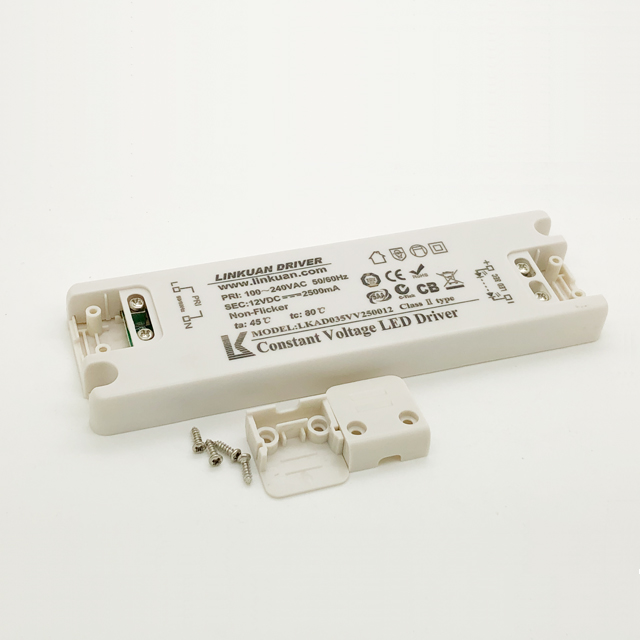

LKAD035V 30W constant voltage 12V/24V 2.5A/1.25A slim led driver
  • LKAD035V 30W constant voltage 12V/24V 2.5A/1.25A slim led driver

LKAD035V 30W constant voltage 12V/24V 2.5A/1.25A slim led driver

  • Product model : LKAD035V
  • Input voltage : 200-240Cac
  • Output power(W) : 30W
  • Output voltage : 12V/24V
  • Output current(A) : 2.5A/1.25A
  • Light adjustment : Non-Dimming
  • Size(MM) : 166x51x15mm
Authentication:
Skype
  • Product Detail
  • Send Inquiry
  • Download

LKAD035V 30W constant voltage 12V/24V 2.5A/1.25A slim led driver

Features

  • 200-240Vac(50/60Hz) Input
  • Hight efficiency,hight PF,good steady;
  • Adopting the original constant voltage and current isolation scheme of the United States.
  • independent, ClassⅡconstant current type;
  • short circuit/over load/over current/ over temperature protection;
  • 100% full load burn-in test;
  • degree of protection IP20;
  • suitable for LED lighting,ceiling light,down light and panel light;
  • 5 years warranty.

More Details

Model LKAD035V
輸入             Input AC電壓范圍/AC Voltage range 100-264V
頻率/Frequency 50/60hz
諧波/THD
功率因數(shù)/Power factor 0.58/230VAC
輸出      Output 額定電壓/Rated voltage 24V
空載電壓/No-load Voltage 24.5V
DC電壓范圍/DC voltage range 23.2-24V
DC電流范圍/DC current range 1000-1500mA
電流精度/Current precision (+/-)5%
額定功率/Rated power 36W
開機延時/Setup Time ≤0.5s/230VAC
使用環(huán)境    Environment Requirements 工作溫度/濕度要求                    Operating Temp./RH -30～+45℃/20～95%
儲存溫度,濕度要求                   Storage Temp./RH  -40～+80℃/10～95%
安全和電磁兼容 認證編號/Certificate SAA:SF201501544
TUV:64.140.16.00628.01
其他 尺寸/Size L165.3*W50.2*H14.7mm
