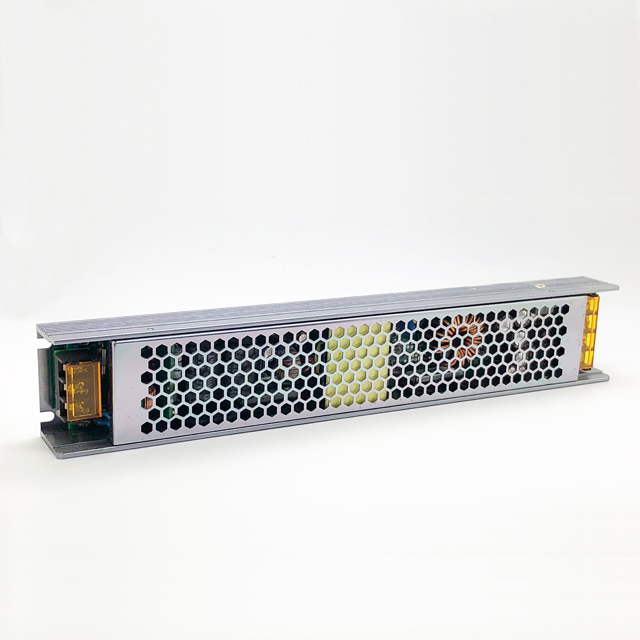

LKAD200V-C 200W 12/24V 17A/8.5A 0-10V Dimming LED drivers
  • LKAD200V-C 200W 12/24V 17A/8.5A 0-10V Dimming LED drivers

LKAD200V-C 200W 12/24V 17A/8.5A 0-10V Dimming LED drivers

  • Product model : LKAD200V-C
  • Input voltage : 200-240Vac
  • Output power(W) : 200W
  • Output voltage : 12Vdc/24Vdc
  • Output current(A) : 17A/8.5A
  • Light adjustment : Constant voltage 0-10V Dimming
  • Size(MM) : 228x72x45mm
Authentication:
Skype
  • Product Detail
  • Send Inquiry
  • Download

LKAD200V-C 200W constant voltage 12/24V 17A/8.5A 0-10V Dimming LED drivers


Features

  • 200-240VAC(50/60Hz) Input
  • High efficiency, high power factor, high stability, high light ratio
  • Constant Voltage 12V/24V
  • Short circuit,over voltage,over current and over temperature protection;
  • Remote control performance is stable, any angle direction can be controlled.
  • independent, ClassⅡ constant current type;
  • degree of protection IP20;
  • can be achieved Lighting,ceiling light,down light and panel light;
  • 3 years warranty.

More Details

Model

LKAD200V-C

輸入Input

AC電壓范圍/AC Voltage range

220-265V

頻率/Frequency

50/60hz

諧波/THD

≤8%/230VAC

功率因數/Power factor

0.6

輸出Output

額定電壓/Rated voltage

12V

空載電壓/No-load Voltage

12V

DC電壓范圍/DC voltage range

12V

DC電流范圍/DC current range

10000-16000mA

電流精度/Current precision

(+/-)4%

額定功率/Rated power

188W

輸入紋波/Output ripple

<200mV

開機延時/Setup Time

≤0.5s/230VAC

使用環境Environment Requirements

工作溫度/濕度要求Operating Temp./RH

-30～+45℃/20～95%

儲存溫度,濕度要求

Storage Temp./RH

-40～+80℃/10～95%

安全和電磁兼容

認證編號/Certificate

IEC61347-2-13    EN6147-2-13

EN55015

Fcc Part15B

其他

尺寸/Size

重量/Net weight

/
