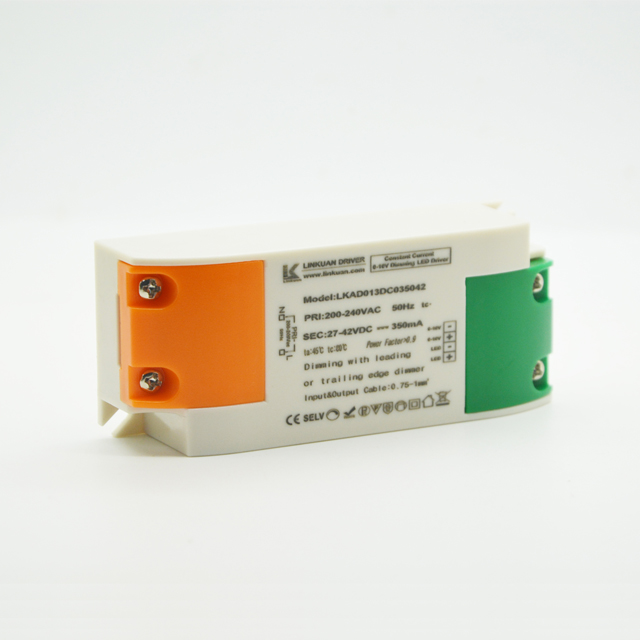

LKAD013D-C 15W 5-42V 350mA 0-10V Dimming LED drivers
  • LKAD013D-C 15W 5-42V 350mA 0-10V Dimming LED drivers

LKAD013D-C 15W 5-42V 350mA 0-10V Dimming LED drivers

  • Product model : LKAD013D-C
  • Input voltage : 200-240Vac
  • Output power(W) : 15W
  • Output voltage : 5-42Vdc
  • Output current(A) : 150-350mA
  • Light adjustment : 0-10V Dimming
  • Size(MM) : 90x40x25mm
Authentication:
Skype
  • Product Detail
  • Send Inquiry
  • Download

LKAD013D-C 15W 5-42V 350mA 0-10V Dimming LED drivers

Features

  • 200-240VAC(50/60Hz) Input
  • High efficiency, high power factor, high stability, high light ratio
  • Flicker free
  • Short circuit,over voltage,over current and over temperature protection;
  • Remote control performance is stable, any angle direction can be controlled.
  • independent, ClassⅡ constant current type;
  • degree of protection IP20;
  • can be achieved Lighting,ceiling light,down light and panel light;
  • 3 years warranty.

More Details

Model

LKAD013D-C

輸入Input

AC電壓范圍/AC Voltage range

200-240Vac

頻率/Frequency

50hz

諧波/THD

功率因數/Power factor

0.993

輸出Output

額定電壓/Rated voltage

40V

空載電壓/No-load Voltage

45V

DC電壓范圍/DC voltage range

26-40V

DC電流范圍/DC current range

300mA

電流精度/Current precision

(+/-)5%

額定功率/Rated power

12W

輸入紋波/Output ripple

<200mV

開機延時/Setup Time

≤0.5s/230VAC

使用環境Environment Requirements

工作溫度/濕度要求Operating Temp./RH

-30～+45℃/20～95%

儲存溫度,濕度要求

Storage Temp./RH

-40～+80℃/10～95%

安全和電磁兼容

認證編號/Certificate

IEC61347-2-13  EN6147-2-13

EN55015

其他

尺寸/Size

重量/Net weight

/
