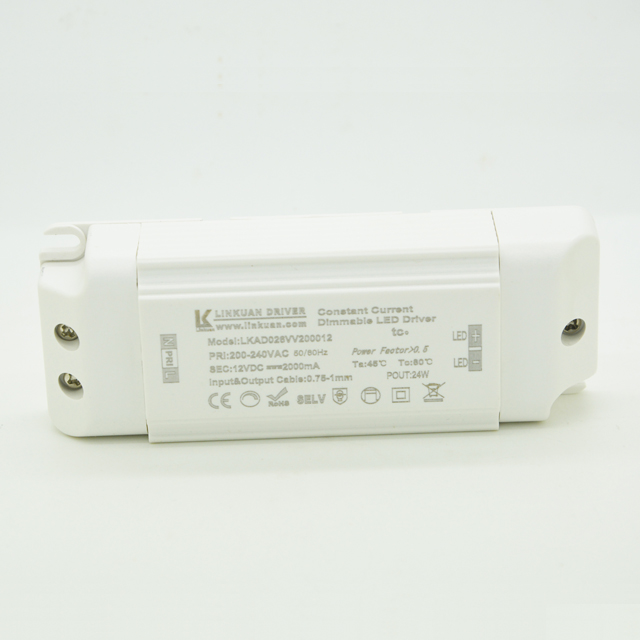

Model |
|
LKAD026V-TD |
|
輸入Input |
AC電壓范圍/AC Voltage range |
200-240V |
|
頻率/Frequency |
50/60hz |
|
|
諧波/THD |
|
|
|
功率因數(shù)/Power factor |
0.5/230VAC |
|
|
輸出Output |
額定電壓/Rated voltage |
12V |
|
空載電壓/No-load Voltage |
12.3V |
|
|
DC電壓范圍/DC voltage range |
11.8-12.3V |
|
|
DC電流范圍/DC current range |
2A |
|
|
電壓精度/Voltage accuracy |
(+/-)3% |
|
|
額定功率/Rated power |
24W |
|
|
開機延時/Setup Time |
≤0.5s/230VAC |
|
|
使用環(huán)境Environment Requirements |
工作溫度/濕度要求Operating Temp./RH |
-30～+45℃/20～95% |
|
儲存溫度,濕度要求 Storage Temp./RH |
-40～+80℃/10～95% |
|
|
安全和電磁兼容 |
認證編號/Certificate |
|
|
|
||
|
其他 |
尺寸/Size |
140*27*44.5 |
|
重量/Net weight |
|
