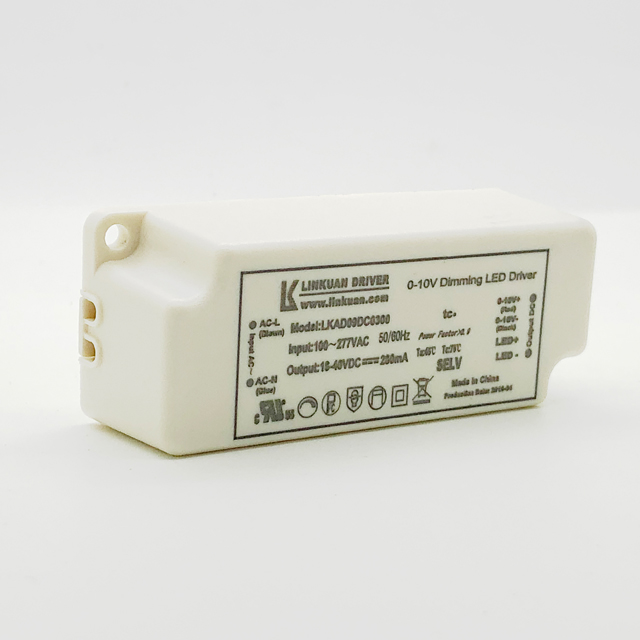

LKAD09D-C 12W 22-42V 350mA 0-10V Dimming LED drivers
  • LKAD09D-C 12W 22-42V 350mA 0-10V Dimming LED drivers

LKAD09D-C 12W 22-42V 350mA 0-10V Dimming LED drivers

  • Product model : LKAD09D-C
  • Input voltage : 120-277Vac
  • Output power(W) : 12W
  • Output voltage : 22-42Vdc/10-22Vdc
  • Output current(A) : 160-350mA/300-600mA
  • Light adjustment : 0-10V Dimming
  • Size(MM) : 76x31x24mm
Authentication:
Skype
  • Product Detail
  • Send Inquiry
  • Download

LKAD09D-C UL approved 12W 22-42V 160-350mA 0-10V dimming LED drivers


Features

  • 120-277VAC(50/60Hz) Input
  • Isolated,0-10V dimming,flicker free
  • Hight efficiency,hight PF,good steady;
  • The copper wire of transformer is Grade F,resist high-temperature 155℃(usually 120℃)
  • independent, ClassⅡconstant current type;
  • short circuit/over load/over current/ over temperature protection;
  • 100% full load burn-in test;
  • degree of protection IP20 (or IP65 for optional)
  • suitable for LED lighting,ceiling light,down light and panel light;
  • 5 years warranty.

More Details

Model LKAD09D-C
輸入             Input AC電壓范圍/AC Voltage range 120-277V
頻率/Frequency 50/60hz
諧波/THD ≤8%/230VAC
功率因數/Power factor 0.95/230VAC
輸出      Output 額定電壓/Rated voltage 40V
空載電壓/No-load Voltage 48V
DC電壓范圍/DC voltage range 20-42V
DC電流范圍/DC current range 980-1200MA
電流精度/Current precision (+/-)3%
額定功率/Rated power 42W
開機延時/Setup Time ≤0.5s/230VAC
使用環境    Environment Requirements 工作溫度/濕度要求                    Operating Temp./RH -30～+45℃/20～95%
儲存溫度,濕度要求                   Storage Temp./RH  -40～+80℃/10～95%
安全和電磁兼容 認證編號/Certificate CCC：2016011002846270
UL:E478938
TUV:64.140.16.00628.01
SAA:SF201501544
其他 尺寸/Size L165xW47xH36mm
重量/Net weight /
