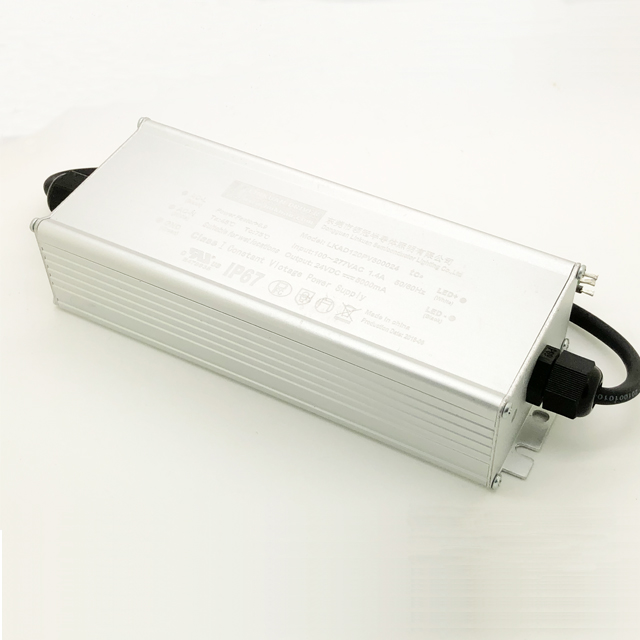

| Model | LKAD120PV | ||||
| 輸入 Input | AC電壓范圍/AC Voltage range | 100-277V | |||
| 頻率/Frequency | 50/60Hz | ||||
| 諧波/THD | |||||
| 功率因數/Power factor | 0.98/230VAC | ||||
| 輸出 Output | 額定電壓/Rated voltage | 12V | |||
| 空載電壓/No-load Voltage | 12.5V | ||||
| DC電壓范圍/DC voltage range | 11.7-12.1V | ||||
| DC電流范圍/DC current range | 8000-10000mA | ||||
| 電壓精度/Voltage precision | |||||
| 額定功率/Rated power | 120W | ||||
| 開機延時/Setup Time | ≤0.5s/230VAC | ||||
| 使用環境 Environment Requirements | 工作溫度/濕度要求 Operating Temp./RH | -30～+45℃/20～95% | |||
|
儲存溫度,濕度要求 Storage Temp./RH |
-40～+80℃/10～95% | ||||
| 安全和電磁兼容 | 認證標識/Certificate | UL:E475760 | |||
| FCC:EM201500163 | |||||
| SAA:SF201501543 | |||||
| CCC:2016011002838544 | |||||
| 其他 | 尺寸/Size | L182+15mm*W72mm*H45mm | |||
| 重量/Net weight | --- | ||||
