Model |
|

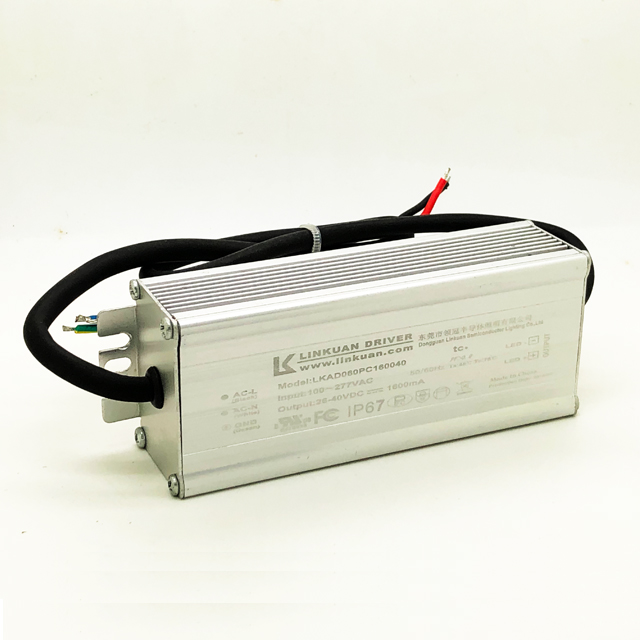

LKAD060P |
|
輸入Input |
AC電壓范圍/AC Voltage range |
90-277V |
|
頻率/Frequency |
50/60Hz |
|
|
諧波/THD |
|
|
|
功率因數(shù)/Power factor |
0.93/230VAC |
|
|
輸出Output |
額定電壓/Rated voltage |
42V |
|
空載電壓/No-load Voltage |
45 |
|
|
DC電壓范圍/DC voltage range |
25-42V |
|
|
DC電流范圍/DC current range |
1120-1250mA |
|
|
電流精度/Current precision |
(+/-)5% |
|
|
額定功率/Rated power |
50W |
|
|
開機延時/Setup Time |
≤0.5s/230VAC |
|
|
使用環(huán)境Environment Requirements |
工作溫度/濕度要求Operating Temp./RH |
-30～+45℃/20～95% |
|
儲存溫度,濕度要求 Storage Temp./RH |
-40～+80℃/10～95% |
|
|
安全和電磁兼容 |
認證標識/Certificate |
UL:E475760 |
|
FCC:EM201500163-1 |
||
|
SAA:SF201501543 |
||
|
CCC:2016011002845332 |
||
|
其他 |
尺寸/Size |
L125+16mm*W52mm*H33mm |
|
重量/Net weight |
|
